Total station control panel

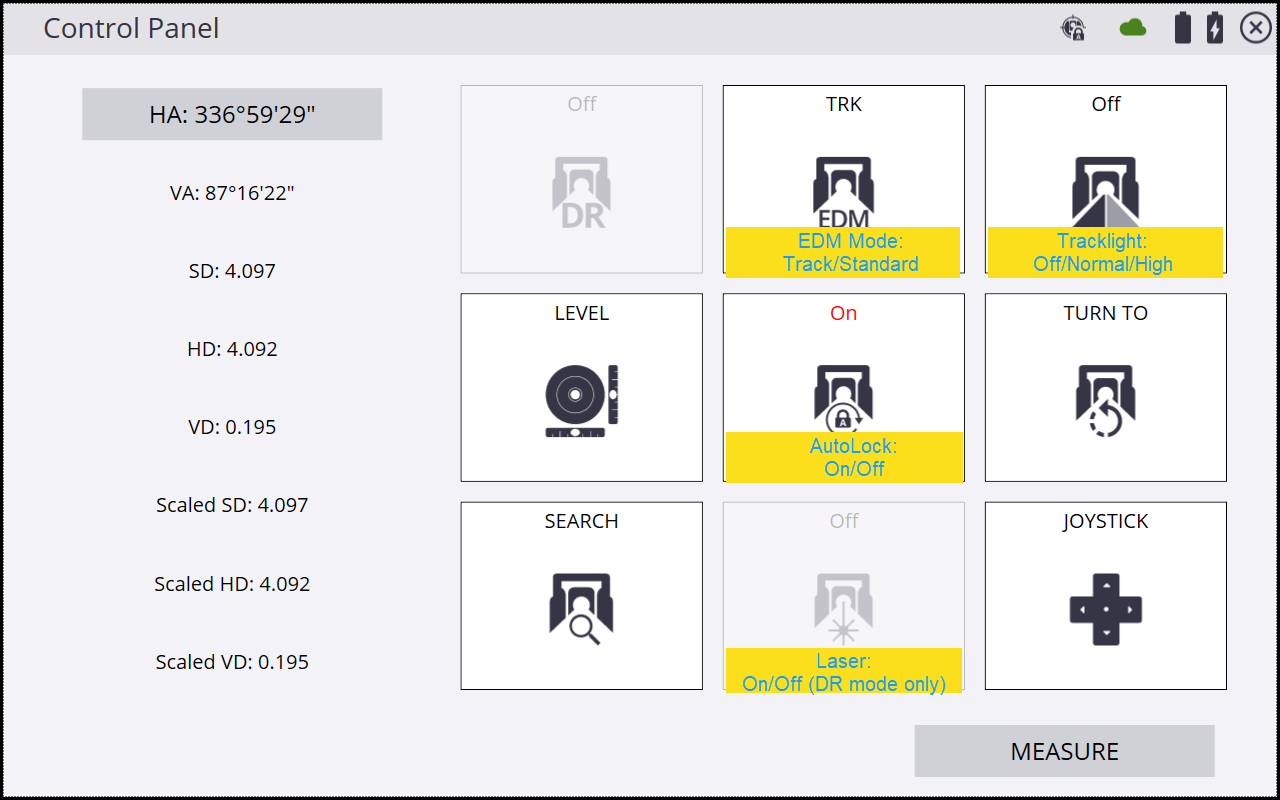

When connected to a total station, tap the target icon in the status bar to open Total Station Control Panel. The control panel contains various options for turning total station settings off and on. It also displays the current raw HA/VA/SD/HD/VD to the target in addition to the scaled SD/HD/VD distances where the current scale factor has been applied.

Certain settings are only available depending on the mode the instrument is in. Tap the buttons to open the Level, Turn To, Search, or Joystick screens, or toggle between the different instrument setting states as indicated in the yellow boxes.
