Add Vertical Offset to a Tunnel
You can use the Edit Tunnel Vertical Offset command to specify a vertical offset from the tunnel alignment centerline to apply at one or more stations along the tunnel corridor, as described in this topic.

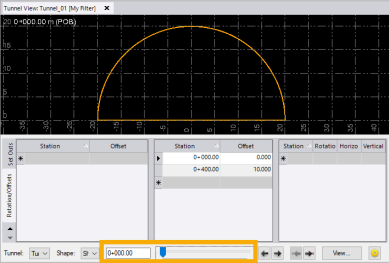

Optionally, you can perform these edits using the Offsets/Rotations sub-tab on the Tunnel View tab with the tunnel you want to edit selected. The instructions in steps 3 and 4 below pertain to vertical offset edits on the Tunnel View tab as well. This is a useful option if you want to view your changes, as you make them, within the context of the entire tunnel.
Prerequisites:
Licensed module. See the Subscription Plans page. For a license matrix by command, see the License page in the TBC Community. Also see View and manage licensed features.
To edit tunnel vertical offset:
- Select Edit Tunnel Vertical Offset in Tunnels > Edit to display the Edit Tunnel Vertical Offset command pane
- In the Tunnel drop-down list located at the bottom of the pane, select the tunnel design for which you want to specify a vertical offset.
- To ensure the offset is applied gradually through interpolation from one station to another (as opposed to an abrupt transition), in the first row enter the station at which you want the interpolation to begin.
For example, you might enter an offset value of 0 for this station that will gradually transition to the offset value specified for the next specified station.
- In subsequent rows, enter a vertical offset value to be applied at subsequent stations as necessary.
Your changes are saved whenever you select or tab onto a new row.
- When you are done, click Close.

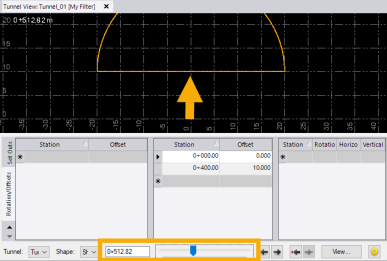

- Use the Tunnel View command to view the vertical offset of the tunnel along its corridor.
