Compute Volumes for a Region

Use the Compute Region Volume command to quickly calculate the cut and fill volumes, areas, centers of mass, and the difference between the volumes of a specific region within your job site. This can give you a 'quick snapshot' of earthwork requirements as you iterate through performing a site mass haul manually.

This command helps you determine how to balance volumes on a site. It provides a quick way for you start with an area to balance and then increase or decrease what is included until the cut volume balances the fill. A haul cost can then be determined by measuring the distance from the center of mass of one area to the center of mass of another. Although the site mass haul workflow is automated and provides this information as well, Compute Region Volume allows you to have more granular control by viewing site volumes one region at a time.

Caution: Using this command, it is possible to miss volumes in areas or to count volumes in overlapping areas twice. In addition, this command does not consider strata or material density states (shrinkage, bulkage, and compaction).When balancing cut and fill volumes, you should consider the volume of the entire site. One way to do this is by running an Earthwork Report.

Using with a Site Mass Haul Analysis

You can use the region boundary polygons created by this command as haul zones when you analyze mass haul needs for a site. The Create Site Mass Haul Analysis command creates a label at the center of mass of each zone, and enables you to consider shrinkage, bulkage, and compaction of the in situ materials.

Tip: Before you run this command, you may want to create two layers: one named Cut that uses your cut color, and one named Fill that uses your fill color. Then, when you create a region boundary for cut and fill areas, and put them on their respective layers, they will be colored accordingly.

Prerequisites:

To access the command:

To compute the volumes of a specific area:

  1. Select a cut/fill map to analyze in the Cut/Fill map list or select <New> to create a cut/fill map. You may also use an Isopach surface rather than a cut/fill map. Isopach surfaces are created when you run the Earthwork report and enable the option to save the intermediate data.
  2. Select the layer on which you want the volume boundary to reside in the Layer list, or select <<New Layer>> to create a new layer.
  3. To use an existing region (or edit or recalculate volumes for a previously-computed region), pick the region boundary from the Optional existing boundary box. Then skip to step 10.
  4. Select an option in the Report list:
    • Report: All - Select this to report the region's cut and fill volumes, areas, centers of mass, and the difference between the volumes. Determining a haul distance from center of mass to center of mass is essential when calculating the cost to move dirt from one region to another.
    • Report: Exclude area - Select this to report the region's cut and fill volumes, centers of mass, and the difference between the volumes.
    • Report: Exclude center of mass - Select this to report the region's cut and fill volumes, areas, and the difference between the volumes.
    • Report: Exclude area & center of mass - Select this to report the region's cut and fill volumes and the difference between them.
  5. If you are creating a new region boundary, ensure that Expand is selected as the Boundary Edit option.
  6. In the Volume boundary name box, type an identifier for the linestring as you want it to appear in the Selection Explorer and graphic views. You can also use the name to select the volume boundary in the Advanced Select command.
  7. In the Filter Settings group, select a Filter type from the list:
    • Circle - In the Radius box, specify the minimum radial distance from the last point that the next point can be added.
    • Tube - In the Length and Width boxes, specify the minimum rectangular distance from the last point that the next point can be added. Polylines are drawn in 2D, so this is not a 3D filter.

      Tip: Start with a filter radius/length of 3 feet/1 meter. Then adjust the tolerance up or down depending on your needs.
      Note: If you start a new linestring, the same filter settings are used until you change them.

  8. Click in the Next points box.
  9. Pick the first point of the boundary in the Plan View, hold down the mouse button, and move along the path. Points are created at a regular interval, based on the tolerance set in Filter Settings. At the end of the boundary, release the button. The first segment is connected to the last to close the boundary, and the cut and fill volume calculations appear in the Results pane at the bottom.
  10. Review the cut volume, fill volume, and differences in the Results area.

    Note: If the difference between cut and fill is less than 2%, it will not be shown due to round-off.
    Tip: You can cut-and-paste text from the results to create a label of the volumes for the region.

  11. Repeat steps 6 - 10 above to create a new volume boundary.

To edit the boundary of a volume region:

  1. Pick the region from the Optional existing boundary box.
  2. Select a Boundary Edit option:

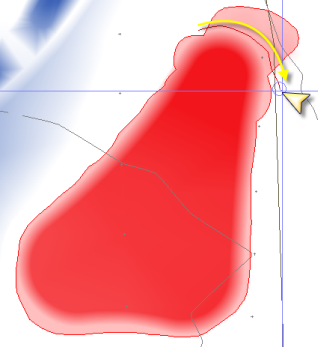

    • Expand - Select this to initially create the volume boundary or to enlarge it. Then pick a point inside the region, loop out around the area to add, and then click back into the region.

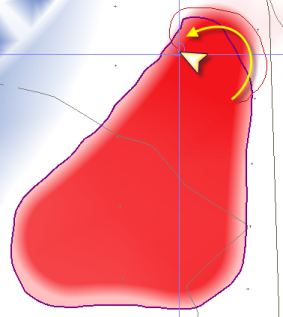

    • Trim - Select this to reduce the size of the volume boundary. Then pick a point outside the region, loop in around the area to add, and then click back outside the region.

  3. Review the new cut volume, fill volume, and differences in the Results area.

Dependencies:

  • None
