Create a Linestring

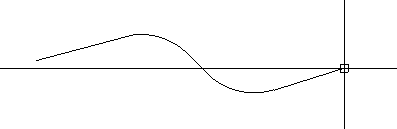

Create linestrings (versatile single or multi-segmented linear or curvilinear objects) to represent 2D or 3D linear objects. 3D lines can be defined and queried entirely from within the Plan View, and they provide a unique and versatile way of establishing the line's elevation or its vertical alignment. You can create linestrings in this software, or you can convert imported lines, such as CAD polylines into linestrings as you edit them. In creating a linestring, you specify the location of each point along the line, and how the segments between them are formed.

Notes:
- When you process a line feature, it is automatically converted to a linestring with feature properties. For more information, see View and Edit a Linestring's Feature Properties.
- You can import lines, polylines, and arcs that were drawn (keyed in) in Trimble Access as editable linestrings displayed in graphic views in your TBC project.

Prerequisites:

none

To create a linestring:

Select Create Linestring in CAD > Lines.
The Create Linestring command pane displays.
Complete the fields in the Create Linestring command pane as described in Linestring Options.
When you are done, click OK.
The Edit Linestring command pane displays. Continue to create the linestring using either of the following options.

To enter the first point by specifying a coordinate:

This option starts the linestring with the coordinate of any location (point) you pick, so that the linestring's geometry remains fixed at that point until you edit its coordinate.

In the Start Point group's Type list, select Coordinate.
Click in the Coordinate field, and pick a location in a graphic view, type a coordinate, or right-click for COGO coordinate options.
Optionally, click the Point Cloud Smart Picking button located to the right of the Coordinate field to display the Point Cloud Smart Picking window, which allows you to create a curb or gutter linestring from a point cloud.
This window allows you to select the type of point picker you want to use to create the linestring:
Enter the elevation for the starting point in the Elevation field, or right-click for COGO elevation options.
Click Save or press [Enter]. The first point of the linestring is saved and you are prompted to add the second point, designating how the segment between them is formed.
Add the second point and the segment between them using the operations in Edit a Linestring's Horizontal Segments.
Optionally, click the New button located at the bottom of the command pane to create another linestring using the same properties already specified in the Create Linestring command pane. Otherwise, click Close.
These commands are also available by right-clicking in the graphic view.

To enter the first point by specifying a point ID:

This option starts the linestring with a named point (point with a point ID) so that the linestring's geometry always reflects the location of the point. If you edit the point, the linestring updates in response.

In the Start Point group's Type list, select Point ID.
Click in the Point ID box, and pick a named point in a graphic view or type a point ID. The elevation of the point you specified is automatically used.
Click Save or press [Enter]. The first point of the linestring is saved and you are prompted to add the second point, designating how the segment between them is formed.
Add the second point and the segment between them using the operations in Edit a Linestring's Horizontal Components.

Optionally, click the New button located at the bottom of the command pane to create another linestring using the same properties already specified in the Create Linestring command pane. Otherwise, click Close.
These commands are also available by right-clicking in the graphic view.
